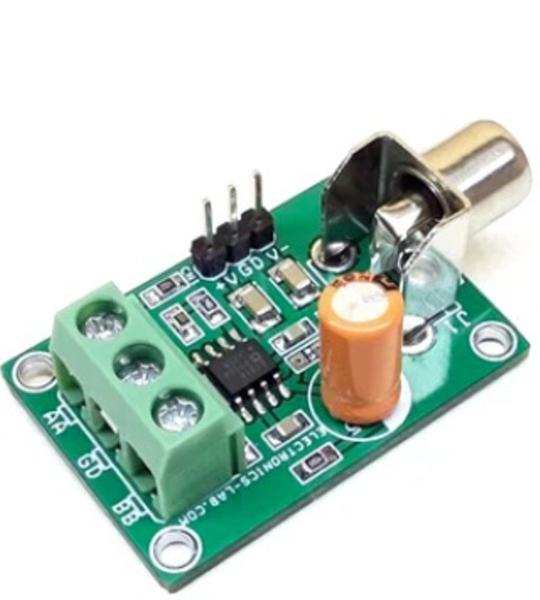

This is a  low-cost solution to transmit a video or digital signal up to 300 Meters over a twisted pair cable. The project has been designed using the  AD8131  chip which is a differential driver for the transmission of high-speed signals over low-cost twisted pair or coaxes cables. The project can be used for either analog or digital video signals or for other high-speed data transmissions. It is capable of driving either  Cat3  or  Cat5  twisted pair or coax with minimal line attenuation. The AD8131 has on-chip resistors that provide for a gain of 2 without any external parts. Several on-chip resistors are trimmed to ensure that the gain is accurate, the common-mode rejection is good, and the output is well balanced. This makes the AD8131 very suitable as a single-ended-to-differential twisted-pair line driver.  The board works with  +/-5V DC  (Dual 5V) supply, RCA connector J1 to feed single-ended Video or digital signal, connector CN2 is used to connect the twisted pair cable (CAT5), D1 Power LED, Resistor R7 and R8 terminate the line at transmitting side.

B122

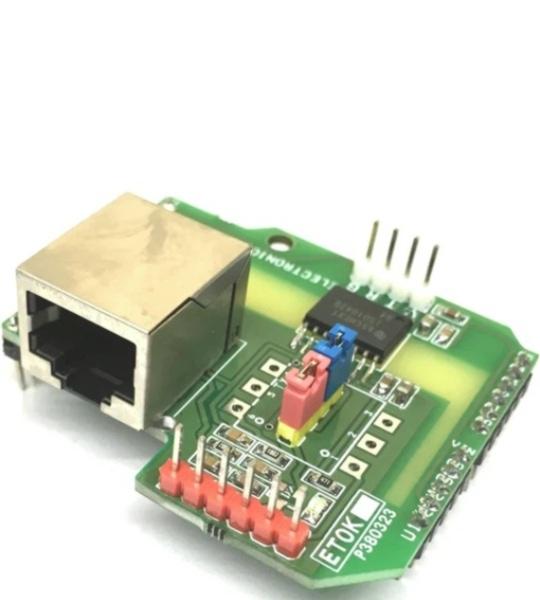

The module described here is an isolated CAN Transceiver module. This module can be used as a standalone module or as an Arduino Uno shield. A controller area network is a two-wire high-speed serial network typically used to provide data communication between host and nodes. The high-speed controller area network transceivers offer integrated isolation, high ESD and high fault protection. The project built using  ISO1042  IC from Texas Instruments. The project requires 5V supply from the host side (Arduino) and separates 5V from the node side for isolation. The project supports up to 5Mbps data rate in CAN FD mode allowing much faster transfer of payload compared to classic CAN. D1 Power LED, CN1 Can bus communication, CN3 RJ45 CAN Communication.

C112

The Teensy 4.1 expansion I/O shield is designed to simplify the connection process, saving you time and effort in your project development.
