Breakout Boards

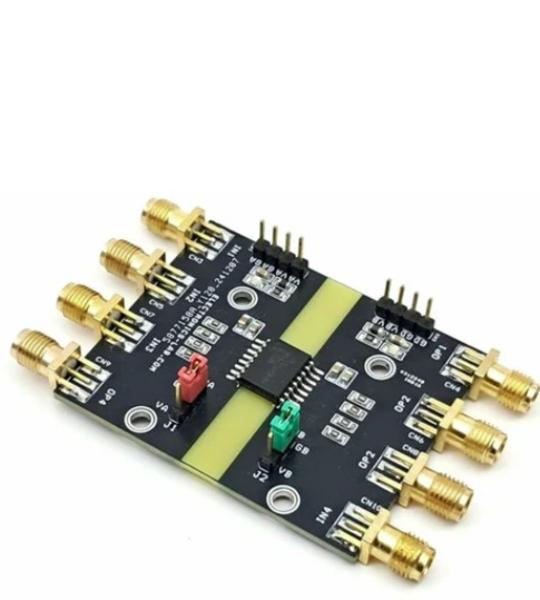

The project presented here is a high-speed, low-power 4-channel digital galvanic isolator. This innovative solution enables the transfer of digital signals between circuits with different power domains, achieving an impressive power consumption of as little as  0.74mW  per channel at a data rate of  1 Mbps,  while operating on a  1.8V  supply. At the heart of this project is the  MAX22445FAWE  chip, which features reinforced isolation, allowing it to withstand a voltage rating of  5KV-RMS  for  60 seconds.  This robust design ensures reliable and secure signal transmission.

D101

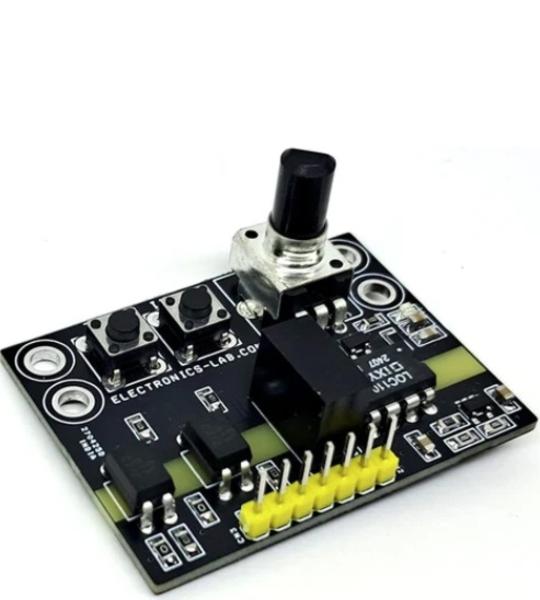

This is an    Isolated Potentiometer Module  that integrates a    LOC110  linear optocoupler, an isolated DC-DC converter, an onboard 10K linear potentiometer, 2 x tactile switches, 2 x PC817 optocouplers, and supporting circuitry. It is designed for reliable use in    VFD drives, process control, PLCs, automation systems, and other industrial applications  where isolated analog signals and isolated switch inputs are required.

D102

Transmitter

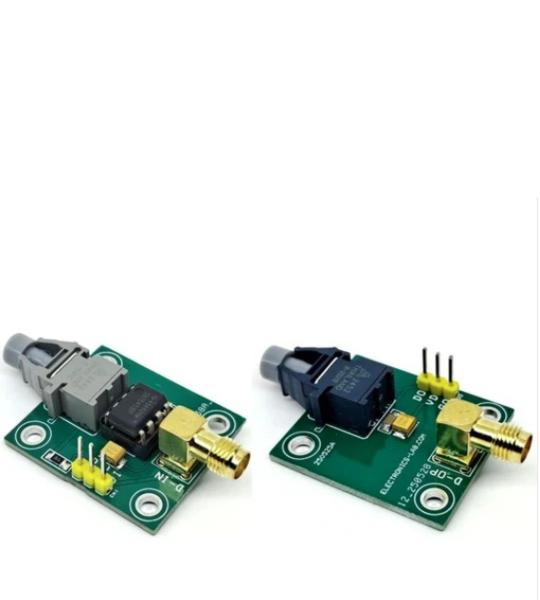

This module enables users to establish a versatile fiber-optic link for applications requiring a low-cost/high immunity solution. It transmits TTL source data over a fiber-optic connection, supporting transmission distances of up to  19 meters with standard fiber-optic cable  and up to  53 meters with enhanced cable.

Receiver

This module enables users to create a versatile fiber-optic link for applications requiring a low-cost solution. This  receiver module  receives data through a fiber-optic link and outputs standard TTL-level signals. It supports transmission distances of up to  19 meters with standard fiber-optic cable  and up to  53 meters with enhanced cable.

D103

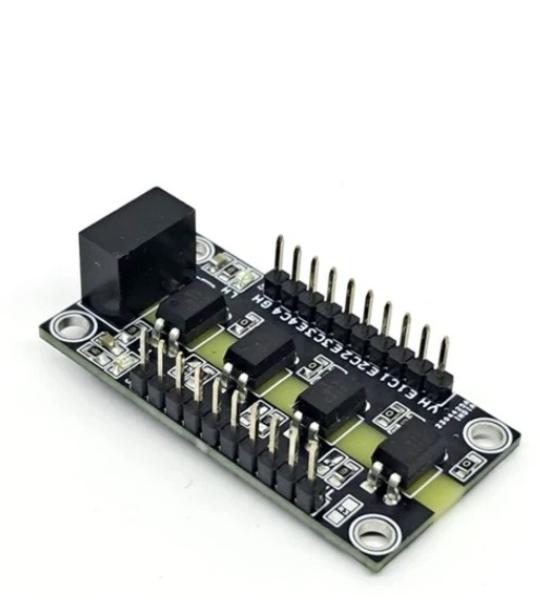

This is a 4-channel optocoupler module features 4x PC817 optocouplers and an onboard DC-DC converter. It provides reliable electrical isolation between the processor and the high-voltage side. The high-voltage side can be configured as either pull-up or pull-down, while the low-voltage side supports both common-cathode and common-anode configurations. Configuration is selectable via onboard resistors. The integrated 5 V DC-DC converter supplies power to the low-voltage side.

D104

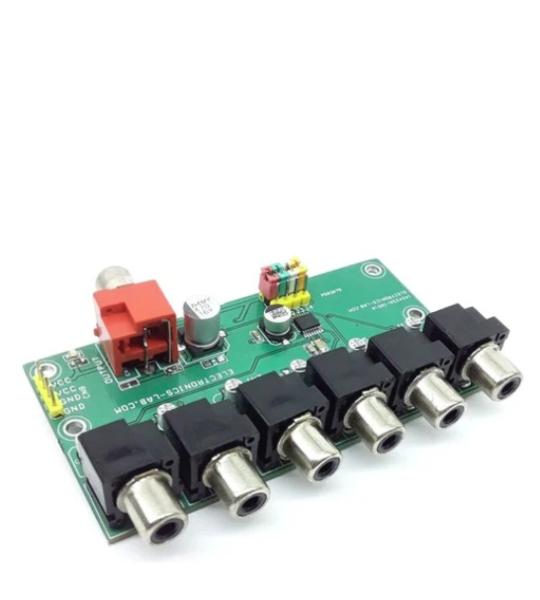

The project presented here is a video driver with 6 channel input selection using onboard jumpers or a microcontroller interface. The circuit features a wide dynamic range and frequency response. The IC can be used with low voltage starting at  VCC=2.8V  and the project supports a broad range of input signals, depending on whether or not a 6-dB video and video driver is included and what combination of sync tip clamp type and bias (resistor terminal) type input is used. RCA connectors are provided for video input and output connection. The header connector helps to power the board. Jumpers J2 to J3 are provided to select the input channels. 6-channel video selection can also be controlled using an external circuit or microcontroller by applying high or low TTL signal to CTLA, CTLB, CTLC, CTLD pins. In this case, use the center pins of jumper J1 to J4.

D105


This Fuel level Monitor allows users to measure the fuel level using a resistive float sensor in the fuel tank. The project measures the fuel level and displays it on a 15-segment bar-graph display.  The project is Arduino-compatible and consists of  ATMEGA328 controller. The resistive sensor with a divider resistor is connected to Analog pin  A0 of the MCU chip. The 15 LEDs of different colors are connected to various Arduino pins.

D107

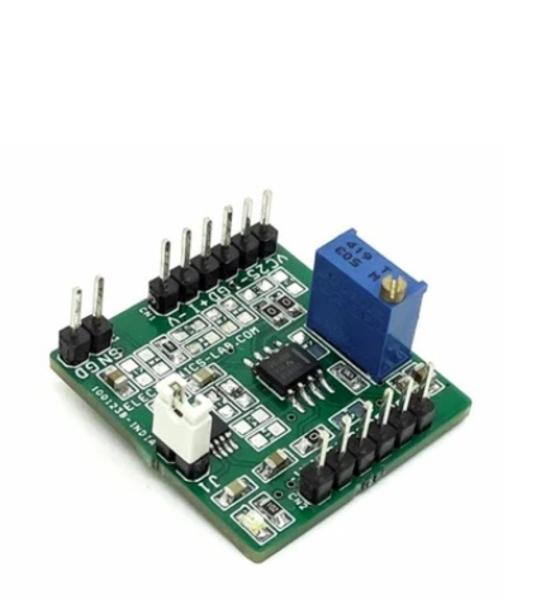

This is a universal instrumentation amplifier module for SOIC8 package. Various configurations are possible by selecting the right components. The board helps users to develop instrumentation amplifier circuits and it can accommodate  SOIC8 devices such as  INA828 from Texas Instruments. All capacitors are ceramic type size 0805 and resistors are also size 0805. It supports dual supply or single supply, install R12 0 Ohms for a single supply usage. Various capacitors and resistors can be installed as per application requirements. D1 is the Power LED. Board also has  2.5V precision reference voltage chip. Jumper J1 is provided to select the 2.5V reference voltage to the  IN828 Amplifier.  An external reference voltage can be fed through CN1 or CN2 Pin 2, Open Jumper J1 in this case. The project also consists of resistors R3, R4, R7, and R8 to create bridge configurations for various sensors. CN3 is provided for sensor input.

D112

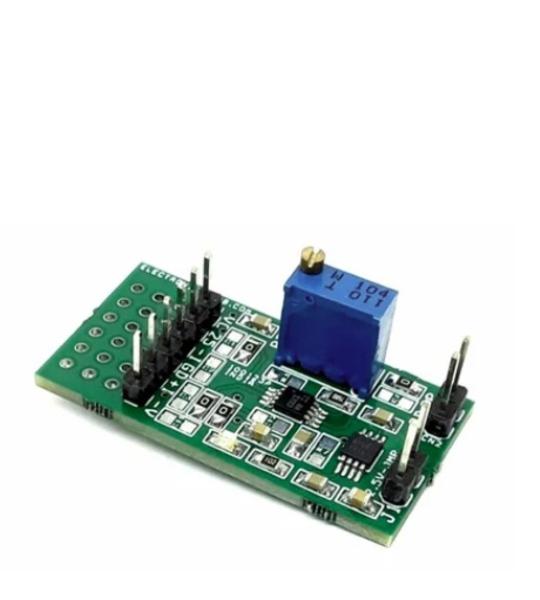

This is a universal instrumentation amplifier module that can be used to develop and test instrumentation amplifier circuits. The board can accommodate VSSOP8 devices such as  INA126, INA333, INA155, INA156 from Texas Instruments. All capacitors are ceramic type with size 0805 and resistor size is also 0805. It supports dual supply or single supply. You should install R8 0 Ohms for a single supply usage. Various capacitors and resistors can be installed as per application requirements. D1 Power LED. Board has also a  2.5V precision reference voltage chip. Jumper J1 is provided to select the 2.5V reference voltage to the  INA333 Amplifier. An external reference voltage can be fed through CN1 Pin 2. In this case Open Jumper J1. Also, a small prototyping area is provided.

D113


This is easy to build and very useful project for hobbyists and students to learn and create op-amp-based projects. The board accommodates a single op-amp in  DIP-8 package. The project provides the user with multiple choices and extensive flexibility for different applications circuits and configurations. It provides the user with many combinations for various circuit types including active filters, differential amplifiers, and external frequency compensation circuits etc. A few examples of applications circuits are given below. LM358 op-amp is the right choice to use or any DIP-8 op-amp with the same pin configuration as LM358 can be used. It supports dual supply or single supply, Jumper J1 is provided to use this board with a single supply, D1 power LED.

D122

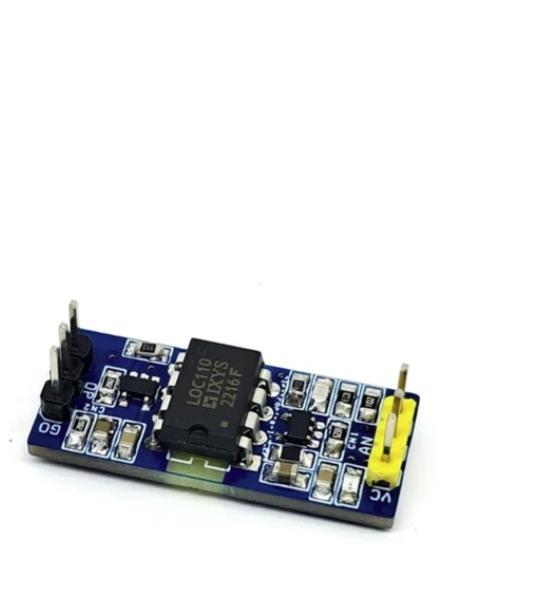

This   Isolated Analog Input module  is designed for interfacing a wide range of analog signals from sensors and field devices. It is ideal for process control, factory automation, and various industrial applications.

The module simplifies the task of connecting analog voltages or sensors to Arduino boards or other microcontrollers while ensuring complete optical isolation. It requires two separate 5V DC power supplies – one for the input side and one for the output side.

By default, the module accepts a  0–5V analog input  and provides an  optically isolated 0–3.3V output.

To use the module, connect your sensor or analog voltage to the input side, and wire the output to an analog pin of an Arduino or the ADC input of any microcontroller.

The design is based on an  optically isolated linear optocoupler  with an isolation voltage rating of  3750V. The  IC2 MCP601  operates as a closed-loop servomechanism, sensing the photodiode current and driving the optocoupler’s LED.  IC1  is the linear optocoupler itself, while  IC3 MCP601  serves as a signal conditioner for the phototransistor output. A  D1 power LED  indicates the input-side power status.

The  LOC110  Single Linear Optocoupler features an infrared LED optically coupled with two photodiodes. One feedback (input) photodiode is used to generate a control signal that provides a servomechanism to the LED drive current, thus compensating for the LED’s nonlinear time and temperature characteristics. The other (output) photodiode provides an output signal that is linear to the servo LED current. The IC features wide bandwidth, high input-to-output isolation, and excellent servo linearity.

D115

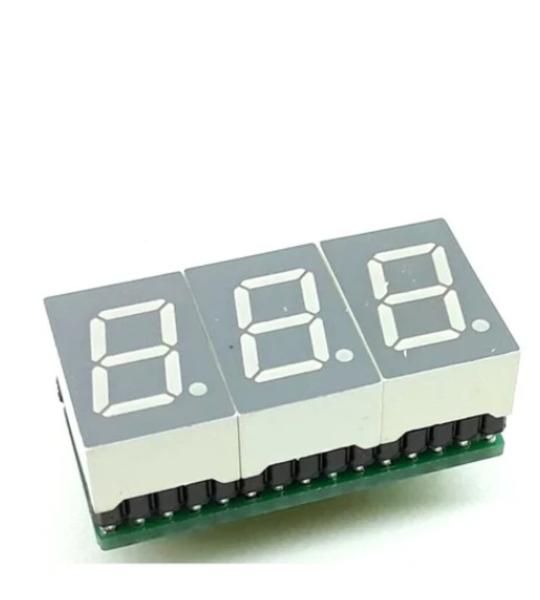

This is a 3 Digit 7-segment display project that contains 3 x Common Cathode displays, current limiting resistors or each LED segment, 3 x PNP Transistor on each common cathode for multiplexing etc. The project works with 5V TTL signals but can be optimized for 3.3V operations by reducing the current limiting resistors' value.

D116

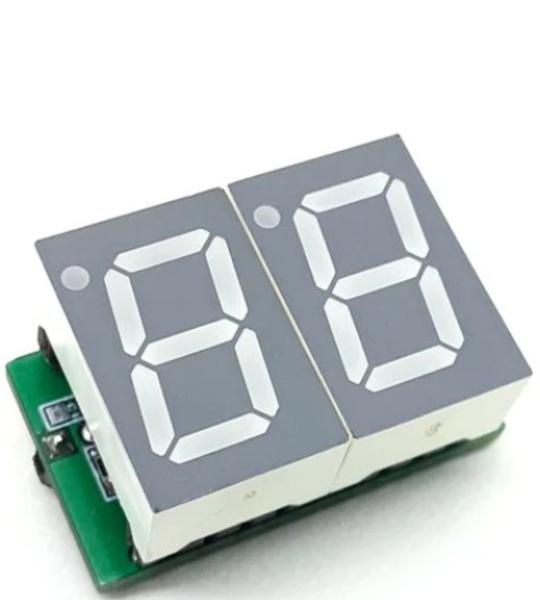

This 2 Digit 7 segment display project contains 2 x Common Cathode displays, current limiting resistors or each LED segment, 2 x PNP Transistor on each common cathode for multiplexing, etc. This is a very compact project that works with 5V TTL signals but can be optimized for 3.3V operations by reducing current limiting resistors’ value. Header connector provided for easy interface to Arduino or other microcontrollers. All inputs are compatible with TTL 5V signals.

D121
