The project shown here is a microphone preamplifier that provides high quality amplification, optimized for use in computers, media and mobile applications. The pre-amplifier provides a differential input stage, making the device particularly effective when layout constraints force the microphone amplifier to be physically remote from the ECM microphone. This project features adjustable gain using PR1 trimmer potentiometer, very high power-supply rejection (95dB), and common-mode rejection (79dB), making it ideal for low-noise applications. Board is provided with condenser microphone as well as connector to connect external microphone, selection of external or internal microphone is possible with the help of on board Jumper. Circuit requires 5V DC input. The circuit provides differential output, use +OP/GND for single ended output. External microphone gain can be changed using R5.

This low cost low voltage 3W class-D stereo amplifier is based on PAM8403 IC, The PAM8403 is a 3W, class-D audio amplifier. It offers low THD+N, allowing it to achieve high-quality sound reproduction. The new filter-less architecture allows the device to drive the speaker directly, requiring no low-pass output filters, thus saving system cost and PCB area. With the same numbers of external components, the efficiency of the PAM8403 is much better than that of Class-AB cousins. It can extend the battery life, which makes it well-suited for portable applications. Trimmer Potentiometer helps to adjust the volume control, CN1 provided to feed the audio signal, CN2 power supply, Mute and shutdown in, LS1 and LS2 to connect the speaker. Shutdown and Mute pin required high level signal input, and can be connect to VDD power pins for normal operation, can be connect to GND for shutdown or mute the audio. The amplifier works well with standard audio signal input.

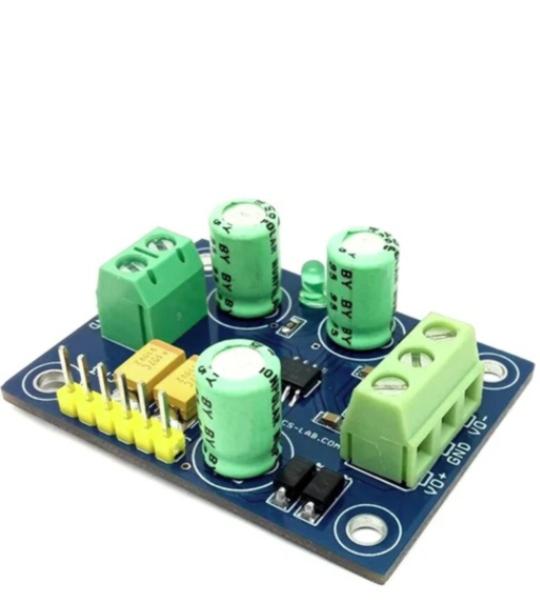

The project presented here is a differential output amplifier that converts a single-ended audio signal input to a balanced output pair. This balanced audio project consists of high-performance OPAMPS with on-chip precision resistors. They are fully specified for high-performance audio applications and have excellent AC specifications, including low distortion (0.0005% at 1 kHz) and high slew rate (15 V/µs). The board is based on DRV135 from Texas Instruments.

This is a low noise Headphone Amplifier capable of delivering 105mW per channel of continuous average power into a 16Ω load with 0.1% (THD+N) from a 5V power supply. The project is based on the LM4811 chip from the boomer series. The board provides high-quality output power with a minimal number of external components. It features a digital volume control that sets the amplifier’s gain from +12dB to −33dB in 16 discrete steps using a two−wire interface or onboard 3 tactile switches. On-board jumper implements the shutdown feature. The chip also has an internal thermal shutdown protection mechanism.

This is a Hi-Efficient 20W mono Class-D audio amplifier, designed to drive speakers as low as 4 ohms in a bridge-tied-load configuration. Due to the low power dissipation and high efficiency of up to 90%, the module doesn’t require a heatsink. The project is built using PAM8320 chip which features short circuit protection, thermal shutdown, over-voltage protection and under-voltage lock-out. Ferrite-Bead is provided on the output of the speaker connection to eliminate EMI. Connect SD to a high and MUTE to a low for normal operation.

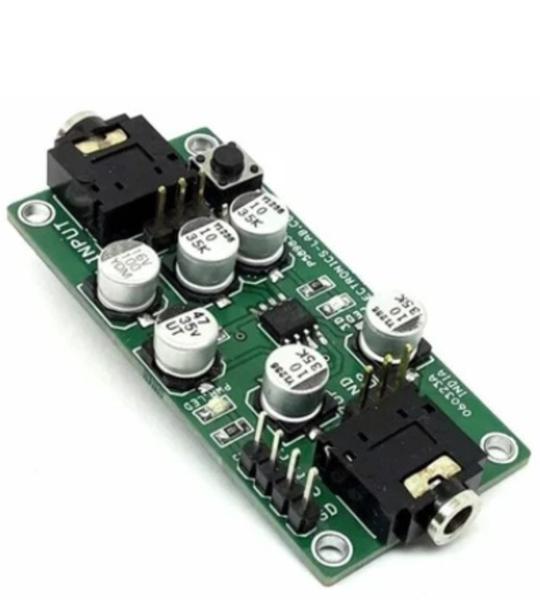

The project presented here is a 3D sound processor, that regenerates 3D sound to stereo speakers. The board is able to regenerate 3D sound from a stereo audio input. It features of wide operating voltage range, wide dynamic range, and low output noise and is suitable for any audio application. This tiny module can add 3D sound effects to your next project. Basically, this mini low-cost module converts a stereo audio signal into 3D effect audio and it is based on PT2387 chip. The chip features a specially designed PTC HRTFs filter and with its space-enhanced circuit, it provides excellent audio quality and performance. The module provides excellent 3D effect audio output from a stereo audio source and a built-in LED display when the 3D sound effect is active. A tactile switch is provided to activate the 3D sound effect.

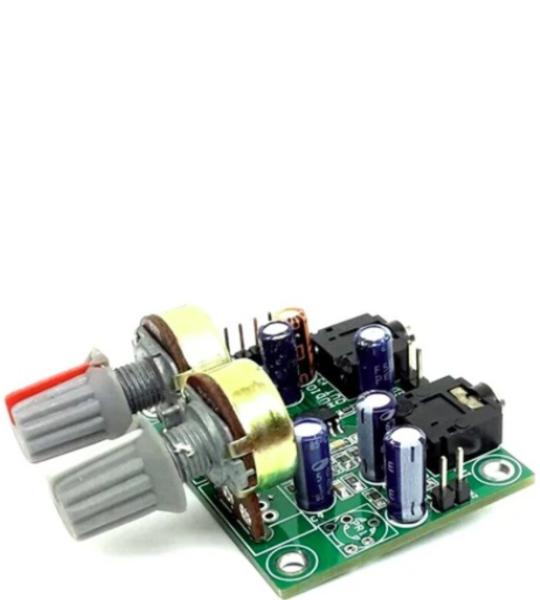

The voice echo or digital delay sound effects project presented here is suitable for applications such as Karaoke, multimedia, musical instrument effects, electronics toys, animatronics, etc. The project is based on PT2399 chip, with an operating supply of 5V DC, and approx. 30mA current consumption. Two potentiometers are provided to set the delay and repeat. The delay range is adjustable from 50ms to 280ms.

The project presented here is a Voltage Controlled Amplifier (VCA). A VCA board helps users control the audio level from a remote potentiometer. This board requires a balanced audio signal. Gain control voltage can be adjusted through potentiometer R13. The project works with a dual (±15V) power supply. Screw terminal connectors are provided for signal input and signal output. The project is built using THAT2181LA chip which is a VCA, designed for high performance in audio-frequency applications requiring exponential gain control, low distortion, wide dynamic range, and low control-voltage feedthrough. This chip controls the gain by converting an input current signal to a bipolar logged voltage, adding a DC control voltage, and re-converting the summed voltage back to a current through a bipolar antilog circuit. Stereo control of VCA with a single potentiometer is possible.

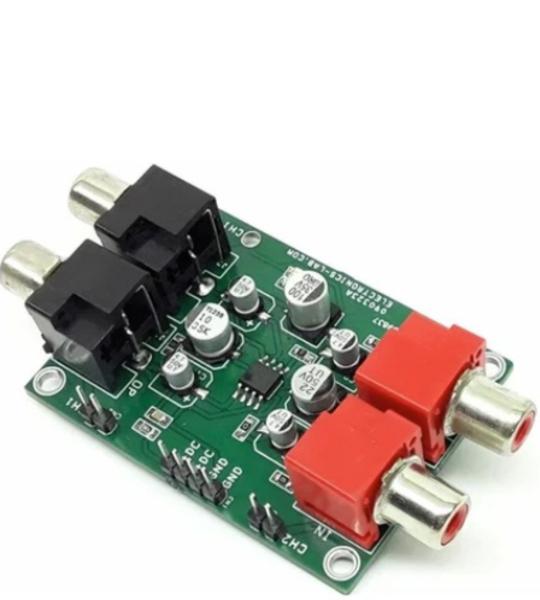

This Ground Isolation Amplifier is developed for car and automotive applications. The board efficiently eliminates problems caused by wiring resistance and removes noise generated by other electrical devices used in automobile environment. In a car or automotive the audio system is grounded to the car body. For this reason, electrical noise generated by the car electrical system can enter the power amplifier input through the chassis and become audible. The BA3123F utilizes the common-mode rejection characteristics of an OPAMP to eliminate this noise. 4 x RCA connectors are provided for easy audio interface. 2x pin header connector is provided for chassis ground.

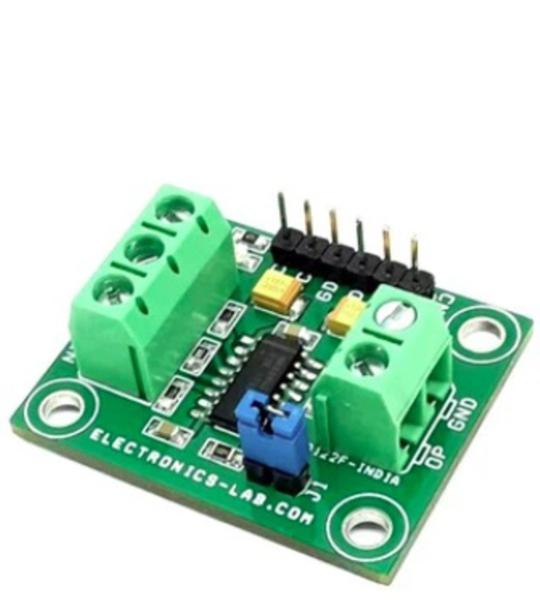

The project presented here is a differential line receiver that offers unparalleled high-speed, low-distortion performance and is ideally suited for digital, video, and RF signal-processing applications. These receivers offer a small-signal bandwidth of 550MHz and have a high slew rate of up to 2000-3800V/µs. The board’s 120mA output capability allows it to be directly coupled to data acquisition systems. The project has been designed using the MAX4445 chip, which has a three-op amp instrumentation amplifier architecture. These ICs have symmetrical differential inputs and a single-ended output. The project operates from ±5V supply and is capable of driving a 100Ω load to ±3.7V.  MAX4445 is compensated for gains of +2V/V or greater, set by an external resistor R3. A low-power enable mode reduces current consumption to 3.5mA. Using current-feedback techniques, the MAX4445 achieves a 550MHz bandwidth while maintaining up to a 5000V/µs slew rate. Excellent differential gain/phase and noise specifications make these amplifiers ideal for a wide variety of digital, video, and RF signal-processing applications. It is important to make a Gold-plated high-quality PCB and use high-grade components and connectors to operate at high frequency.

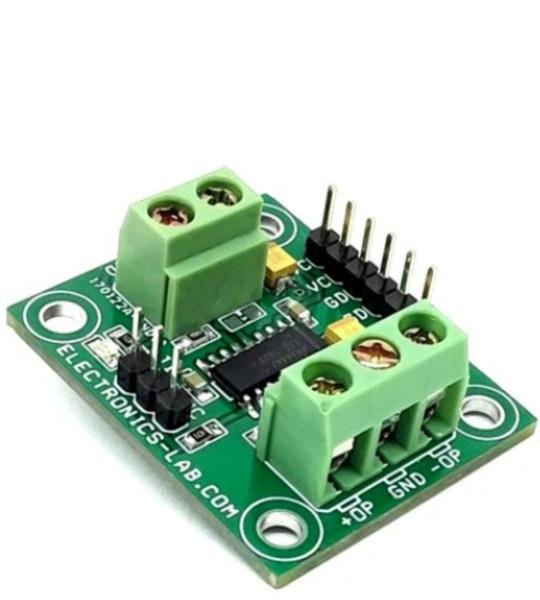

This is a Line Driver project. This single-ended-to-differential line driver is designed for high-speed communications. Using current feedback for greater bandwidth, this project delivers full-power bandwidth up to 405MHz and features slew rates as high as 6500V/µs. The MAX4447 has a fixed gain of +2V/V and a small-signal bandwidth of 430MHz. A low-power enable mode reduces current consumption below 5.5mA and places the outputs in a high-impedance state, Jumper J1 is provided to selectively enable and disable. The circuit can deliver differential output swings of ±6.2V from ±5V supplies with a 50Ω load. Excellent differential gain/phase and noise specifications make these project ideal for a wide variety of video and RF signal-processing and transmission applications. It is advisable to use gold-plated PCB and high-quality connectors for high-frequency operation.

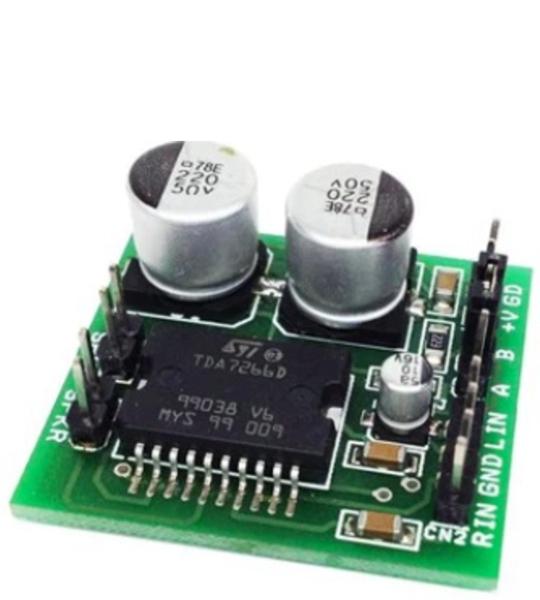

Tiny stereo audio amplifier board has been designed around SMD TDA7266D IC from ST. The TDA7266D is a dual bridge amplifier specially designed for Portable Audio, LCD TV/Monitor, PC Motherboard, and TV applications. This circuit provides high quality audio output of 3W approx. on each channel with standard audio signal input. The circuit works with 3.5V to 5V. Due to low supply input this amplifier is suitable for small size audio gadgets and portable audio applications like MP3 player, Voice messaging system, Warning signals, Annunciator etc.
